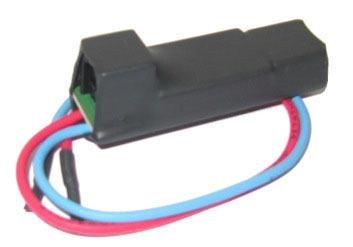

Colibri II power and data interface is a special unit that coverts 12V to  5V power supply for the Colibri II.It also converts TTL levels of serial communication to RS232 levels. Maximum input voltage is 24V.



The unit has two plugs. On one side there is a standard USB A connector. Use the included USB cable to connect the Colibri II on this side. On the other side is an RJ45 plug. This plug is a standard IGC 6-pin connector.



Pins by numbers:



1 = + 12 V (red external wire)

2,3 = not used

4 = data out (RS232)

5 = data in - input (RS232)

6 = GND (blue external wire

Colibri II - PC interaction



Task declaration transfer ( LXe, SeeYou...)

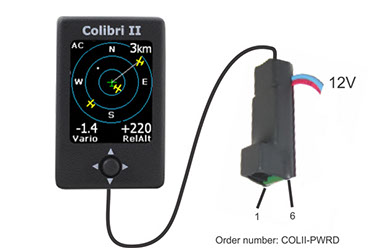

Colibri II with power and data interface



Power Colibri II from glider network and NMEA output



Pins by numbers:



1 = + 12 V (red external wire)

2,3 = not used

4 = data out (RS232)

5 = data in - input (RS232)

6 = GND (blue external wire
